Universal ECU For Micro Jet Engines

Description

Ardu_ECU Board (Firmware Rev 12, Board Rev 2.0 )

Ardu_ECU is an open source ECU for gas start model Jet engines.

This board is based on ESP32 microcontroller and comes with Ardu_ECU Firmware 12 pre loaded.

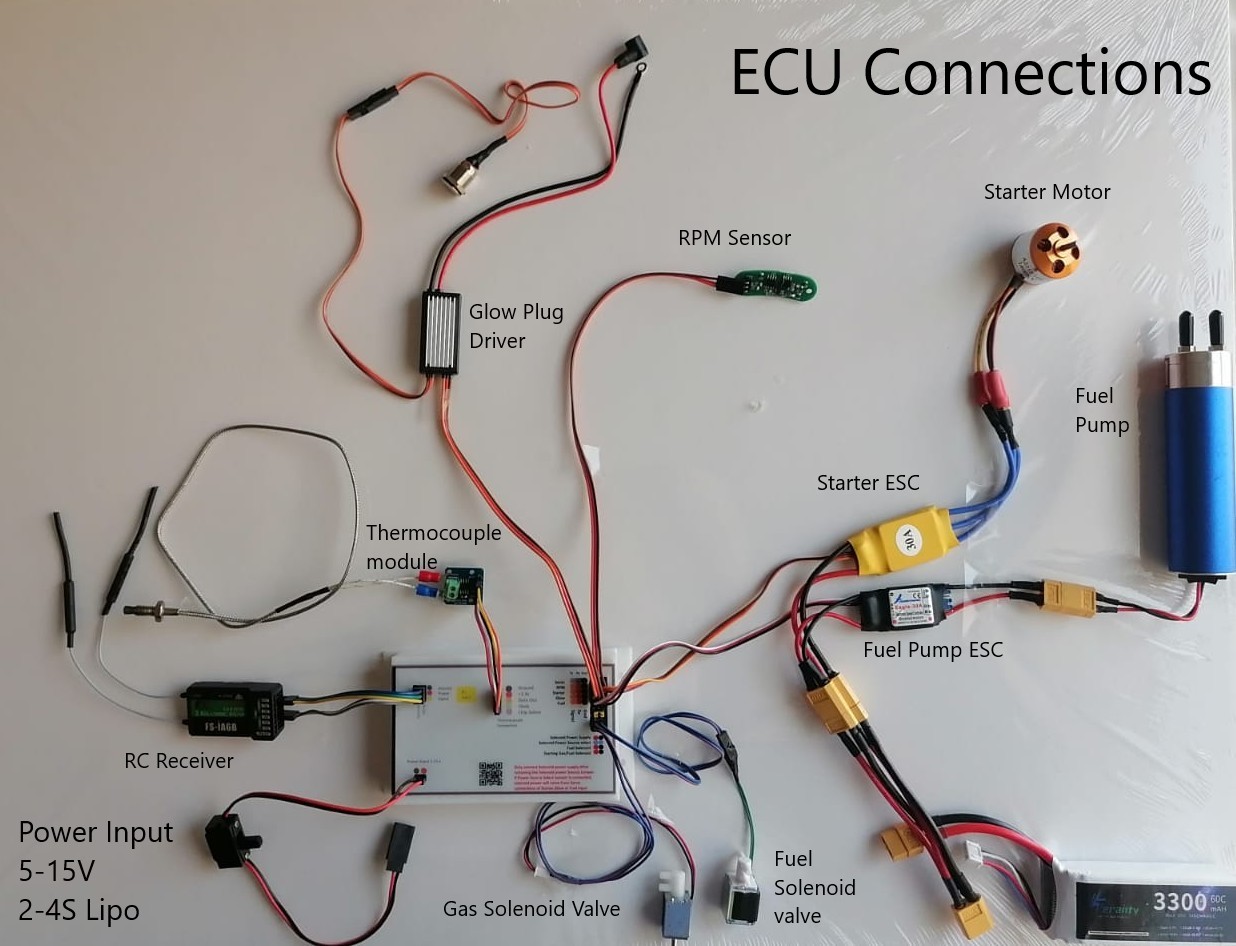

For a fully functional controller you will need to add ESC’s (Electronic Speed Controllers) for Starter Motor and Fuel Pump. In addition you will need to use a max31855 K type thermocouple and sensor board to connect to ECU for temperature measurement.  It takes RPM input as a 3.3-5volt square wave and can work with 1 pulse per revolution  or 2 pulse per revolution RPM sensors. The type of sensor can be selected from setting menu.

The ECU settings can be modified and sensor data can be monitored through a built in WiFi Web Server.

The board can be reprogrammed like other Arduino boards through serial pins by using a USB to serial converter (Not Included)

ArduECU Guide: ECU Rev11 Guide

For more information on Ardu_ECU you can visit the github at

Ardu_ECU: Arduino Based ECU for mini Jet engines (github.com)
